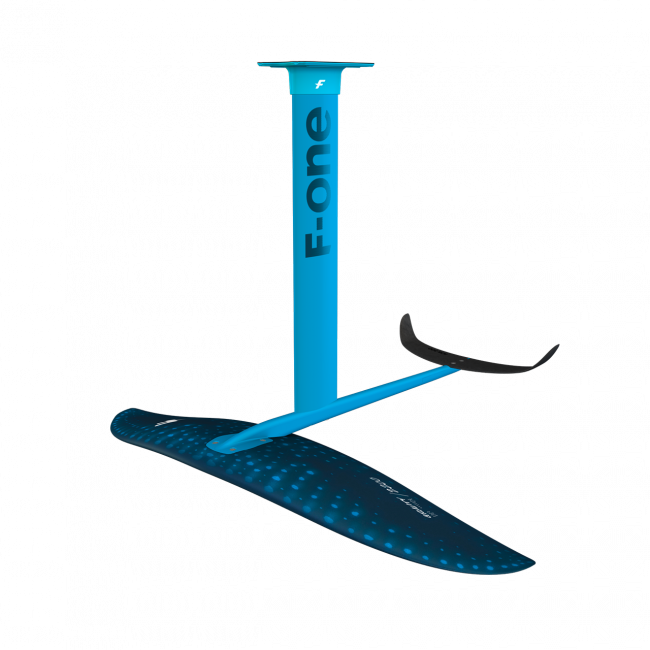

GRAVITY 2200 FCT FOIL

F-ONE GRAVITY 2200 FCT FOIL

The foils of the Gravity line are designed to provide a solid lift with a smooth take-off and great carving potential. Right in the line of its best-selling carbon sibling, this new Gravity is the ideal foil to get started and progress in wing-foiling and surf-foiling.

• Smooth take-off
• Stability and lift
• Easy to turn

A Gravity foil is an intuitive foil to use. It generates lift at low (and even very low) speed but does it in a smooth way so you can keep your balance easily. The wings are designed to be easy to roll and turn, so they can perform in the surf.

The Gravity has its dimensions optimized to provide enough lift to get anyone flying. F-ONE have made sure to keep the drag limited to maintain a thrilling feeling of glide. The span is generous making it a very stable foil and the refined shape details such as the arch curvature, the profile and the wing tips ensure it remains highly manoeuvrable.

The wing is covered using a thin but strong protective layer to protect it from scratches and digs. It is built in fiberglass around an injected foam core and fits on a streamlined, aluminum fuselage. The two connect via a large, solid plate at the front of the fuselage ensuring a very solid and stiff bond between the wing and the fuselage. The fuselage can be connected to the standard F-ONE aluminium mast of the desired length. The setup and disassembly are also super easy and the whole is very travel friendly.

The Gravity comes with the IC6 300 stab. This stabilizer offers easy take-off and good directional stability for a secure feel which is perfect when riding. Built using the IC6 technology it is both strong and durable.

Tech:

Foil Compression Technology: The Foil Compression technology is an F-ONE innovation offering impressive technical properties making it particularly suited for foil subjected to high stresses and bending loads.

Our FCT front wings are built in fiberglass around a high density foam core. The wing is covered by our thin and strong shield skin.
This technology offers one of the most accessible foil setup market whilst keeping the DNA of its carbon siblings.

Fusion Link: The FUSION LINK enables the perfect connection between the Fuselage and the Front Wing using a large solid plate at the front of the fuselage.
It is screwed to the front wing using 4 x M6 – 14 mm screws , resulting in a connection geometry that ensures a very solid and stiff assembly.

Aluminium 6063 and 606: This aluminium alloy boasts good mechanical properties and can be processes in many different ways whilst also offering a natural resistance to corrosion.

Produced from an extrusion process, F-ONE's aluminium profiles make the most of this homogeneous material to provide perfect stiffness both in torsion and bending. All areas in contact with other metals or carbon parts are duly isolated against galvanic reactions.

Machining blocks of aluminium 6061 guarantees the maximum accuracy and preserves the mechanical properties of this higher grade of aluminium. All parts are fully anodized and stainless steel inserts are fitted with isolating gel when fastening is required.

Alu-Mast 45 - 95cm: the F-ONE aluminium mast can be used for all disciplines; kite, surf, stand up paddle, wing foil and windsurf. The profile is extruded with precision from 6063 aluminium block.

The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down.

It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular.

The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another (45 / 55 / 65 / 75 / 85 / 95 cm).

A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).

Stab ICT 300: Versatile and progressive, the IC6 300 stabiliser is the perfect match for the IC6 950 front wing.

Equipped with generous winglets, the stabilizer blade offers fantastic control with enough surface area to provide full confidence in all situations.

Built with the IC6 technology, it is very durable and designed to be securely mounted on F-ONE fuselages, its profile and angle of incidence were tuned to achieve a very intuitive balance which will help you get your foiling maneuvers in more easily.

Setup:

Sizes:

Sizes recommended:

• 45 > 95 KITEFOIL
• 55 > 75 SURF / SUP FOIL
• 65 > 75 WING FOIL
• 75 > 85 WIND FOIL
