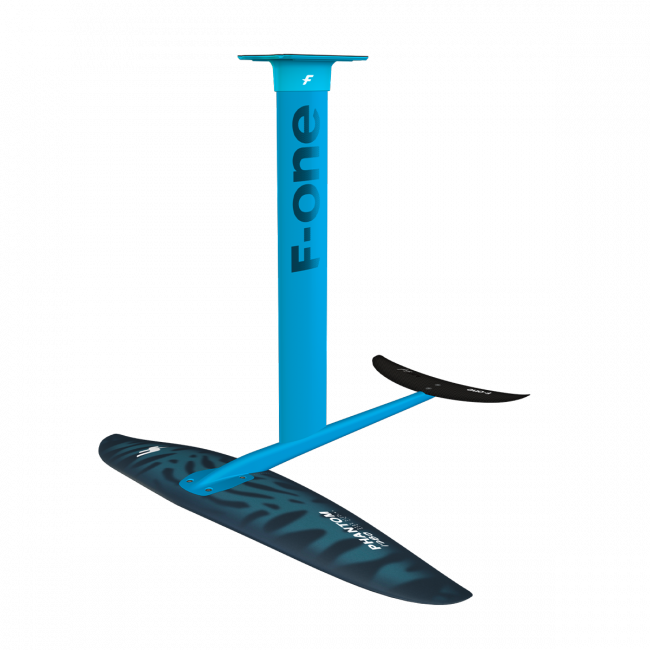

F-ONE PHANTOM FCT 1280 FOIL
The foils of the Phantom line are designed to glide effortlessly when pumping or connecting waves and then prove very agile and precise when surfing.
- Speed and glide
- Pumping/downwind machine
- Nimble and maneuvrable
Area: 1280 cm²
Span: 87 cm
Aspect Ratio: 5.9
Alu Fuselage: 67 Surf or 74 Surf
Using a refined design to achieve higher finesse, the Phantom foils glide faster and for longer. Connecting waves whether during surfing or downwinding thereby becomes much easier and more fun. Yet, connecting waves isn’t much fun if you can’t turn and this is why carving is also part of the DNA of the Phantom foils. By working on the lift distribution, arch shape and other details, F-ONE achieved a high-aspect, performance foil that can carve smooth curves on the waves and swells.
The Phantom wings are recommended with the R275 Surf stab made with the RTM technology. This stabilizer offers better glide and a looser feel. It’s the ideal match for the speed and glide of the Phantom wings. The looser feel will help turning these higher aspect wings and provide an awesome surfing experience.
Foil Compression Technology: The Foil Compression technology is an F-ONE innovation offering impressive technical properties making it particularly suited for foil subjected to high stresses and bending loads.
Our FCT front wings are built in fiberglass around a high density foam core. The wing is covered by our thin and strong shield skin.
This technology offers one of the most accessible foil setup market whilst keeping the DNA of its carbon siblings.
Fusion Link: The FUSION LINK enables the perfect connection between the Fuselage and the Front Wing using a large solid plate at the front of the fuselage.
It is screwed to the front wing using 4 x M6 – 14 mm screws , resulting in a connection geometry that ensures a very solid and stiff assembly.
Aluminium 6063 and 606: This aluminium alloy boasts good mechanical properties and can be processes in many different ways whilst also offering a natural resistance to corrosion.
Produced from an extrusion process, F-ONE's aluminium profiles make the most of this homogeneous material to provide perfect stiffness both in torsion and bending. All areas in contact with other metals or carbon parts are duly isolated against galvanic reactions.
Machining blocks of aluminium 6061 guarantees the maximum accuracy and preserves the mechanical properties of this higher grade of aluminium. All parts are fully anodized and stainless steel inserts are fitted with isolating gel when fastening is required.
Alu-Mast 45 - 95cm: the F-ONE aluminium mast can be used for all disciplines; kite, surf, stand up paddle, wing foil and windsurf. The profile is extruded with precision from 6063 aluminium block.
The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down.
It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular.
The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another (45 / 55 / 65 / 75 / 85 / 95 cm).
A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).
