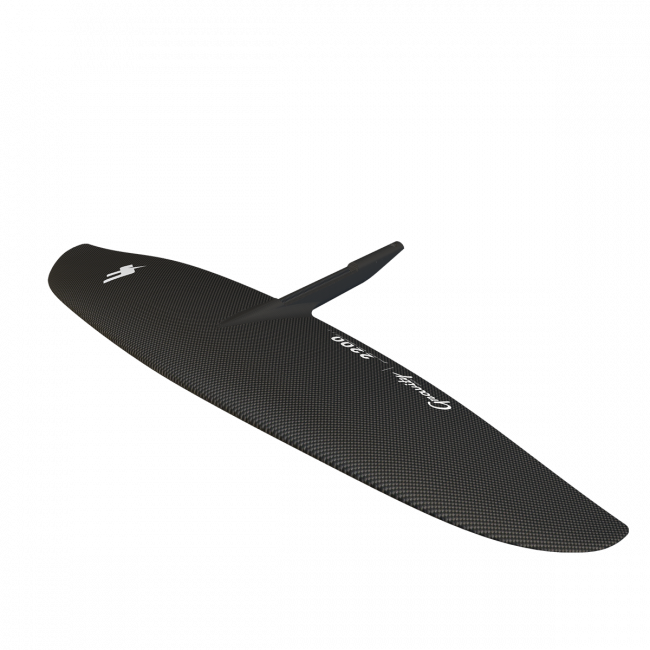

F-ONE GRAVITY CARBON 2200 FRONT WING
The foils of the Gravity line are designed to provide a solid lift with a smooth take-off and great carving potential.
- Sharpest turns & carves
- Great stability in the turns
- Perfect speed control
- Monobloc Carbon Construction
Area: 2195 cm²
Span: 110 mm
Aspect Ratio: 5.5
Weight: 2.15 kg
Monobloc Structure: Having a stiff and solid assemble between all parts of the foil is key to making it perform at its best as well as easy to handle.
The connection of the front wing with the fuselage is highly stressed and loaded, it is one of the critical area of the assembly in terms of structures.
The MONOBLOC wings are molded together with the fuselage in one shot, thereby removing the connection and the chances for unwanted and parasitic movements.
The structural fibers of the fuselage are spread into the wing to achieve the most natural, sound and light connection.
It is also incredibly stiff and provides absolute control at all times, with the foil responding perfectly to all of the riders input.
When the overall dimensions are too large for convenient transportation, a connection is set into the fuselage, behind the mast where the loads are smaller.
Pre-Peg: With pre-peg fabrics, the carbon fibre is directly impregnated with epoxy resin by its manufacturer. This guarantees a perfect ration between epoxy and carbon and represents the highest quality process.
Quality control is much better and so is the working environment for the people building our foils. Pre-Preg fabrics offer the lightest weight with the best mechanical properties of carbon fiber.
TITAN connection: The titan connection enables a very stiff and direct connection between two parts locking efficiently any movement in all directions. It's format is compact which is hydrodynamically efficient and very easy to use, assemble and disassemble.
